80 Bolt Torque Pattern

1736557494133251795132129374553616977375675951433527191171523313947556371792746658504234261810614223038465462707847668605244362820128162432404856647280

Torque Sequence: 1, 73, 65, 57, 49, 41, 33, 25, 17, 9, 5, 13, 21, 29, 37, 45, 53, 61, 69, 77, 3, 75, 67, 59, 51, 43, 35, 27, 19, 11, 7, 15, 23, 31, 39, 47, 55, 63, 71, 79, 2, 74, 66, 58, 50, 42, 34, 26, 18, 10, 6, 14, 22, 30, 38, 46, 54, 62, 70, 78, 4, 76, 68, 60, 52, 44, 36, 28, 20, 12, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80

For 80 bolt flanges, torque bolts in a criss-cross sequence.


Lookup flange bolt torque patterns on your phone in seconds

App Store badge for the Flange Bolt Chart appGet it on Google Play
Flange bolt chart app screenshot

High-resolution image for download

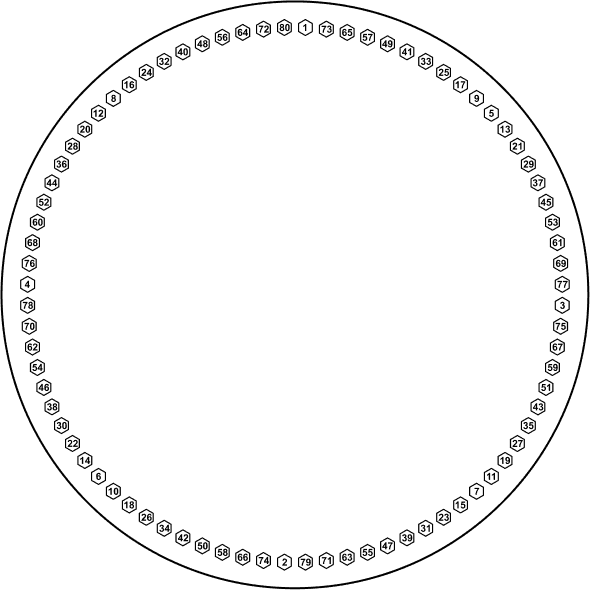

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 80 bolt torque sequence below.

80 bolt torque pattern
