76 Bolt Torque Pattern

17365574941332517951321293745536169375675951433527191171523313947556371274665850423426181061422303846546270476686052443628201281624324048566472

Torque Sequence: 1, 73, 65, 57, 49, 41, 33, 25, 17, 9, 5, 13, 21, 29, 37, 45, 53, 61, 69, 3, 75, 67, 59, 51, 43, 35, 27, 19, 11, 7, 15, 23, 31, 39, 47, 55, 63, 71, 2, 74, 66, 58, 50, 42, 34, 26, 18, 10, 6, 14, 22, 30, 38, 46, 54, 62, 70, 4, 76, 68, 60, 52, 44, 36, 28, 20, 12, 8, 16, 24, 32, 40, 48, 56, 64, 72

For 76 bolt flanges, torque bolts in a criss-cross sequence.


Lookup flange bolt torque patterns on your phone in seconds

App Store badge for the Flange Bolt Chart appGet it on Google Play
Flange bolt chart app screenshot

High-resolution image for download

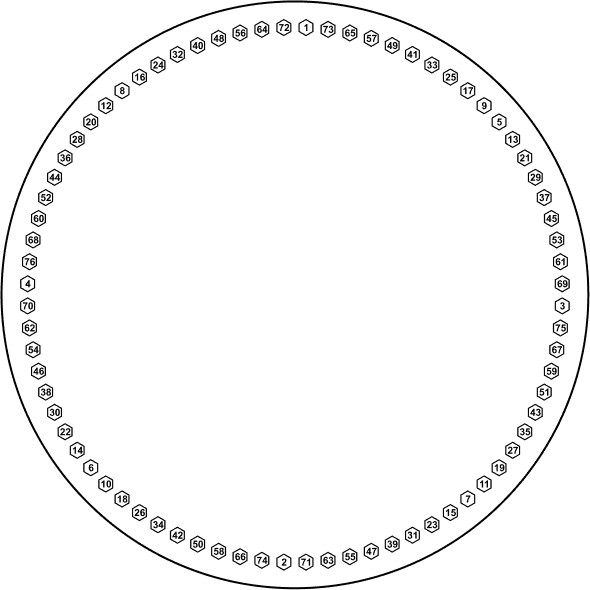

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 76 bolt torque sequence below.

76 bolt torque pattern
