#1500 Flange Bolt Chart
Warning: For reference only
Bolt lengths are sourced from the ASME standard listed at bottom. Exact bolt lengths will vary based on inputs. For more detailed calculations we recommend using the app.
1500 Class Flanges
| Nominal Pipe Size | Wrench Size (inches) | Number of Studs | Diameter of Studs (inches) | Length of Stud - RF (inches) | Length of Stud - RTJ (inches) |
|---|---|---|---|---|---|
| 1/2 | 1.25 | 4 | 0.75 | 4.25 | 4.25 |
| 3/4 | 1.25 | 4 | 0.75 | 4.5 | 4.5 |
| 1 | 1.438 | 4 | 0.875 | 5 | 5 |
| 1-1/4 | 1.438 | 4 | 0.875 | 5 | 5 |
| 1-1/2 | 1.625 | 4 | 1 | 5.5 | 5.5 |
| 2 | 1.438 | 8 | 0.875 | 5.75 | 5.75 |
| 2-1/2 | 1.625 | 8 | 1 | 6.25 | 6.25 |
| 3 | 1.813 | 8 | 1.125 | 7 | 7 |
| 4 | 2 | 8 | 1.25 | 7.75 | 7.75 |
| 5 | 2.375 | 8 | 1.5 | 9.75 | 9.75 |
| 6 | 2.188 | 12 | 1.375 | 10.25 | 10.5 |
| 8 | 2.563 | 12 | 1.625 | 11.5 | 11.75 |
| 10 | 2.938 | 12 | 1.875 | 13.25 | 13.5 |
| 12 | 3.125 | 16 | 2 | 14.75 | 15.25 |
| 14 | 3.5 | 16 | 2.25 | 16 | 16.75 |
| 16 | 3.875 | 16 | 2.5 | 17.5 | 18.5 |
| 18 | 4.25 | 16 | 2.75 | 19.5 | 20.75 |
| 20 | 4.625 | 16 | 3 | 21.25 | 22.25 |
| 24 | 5.375 | 16 | 3.5 | 24.25 | 25.5 |
Source: "ASME B16.5-2020 Table 19C Templates for Drilling Class 1500 Pipe Flanges"

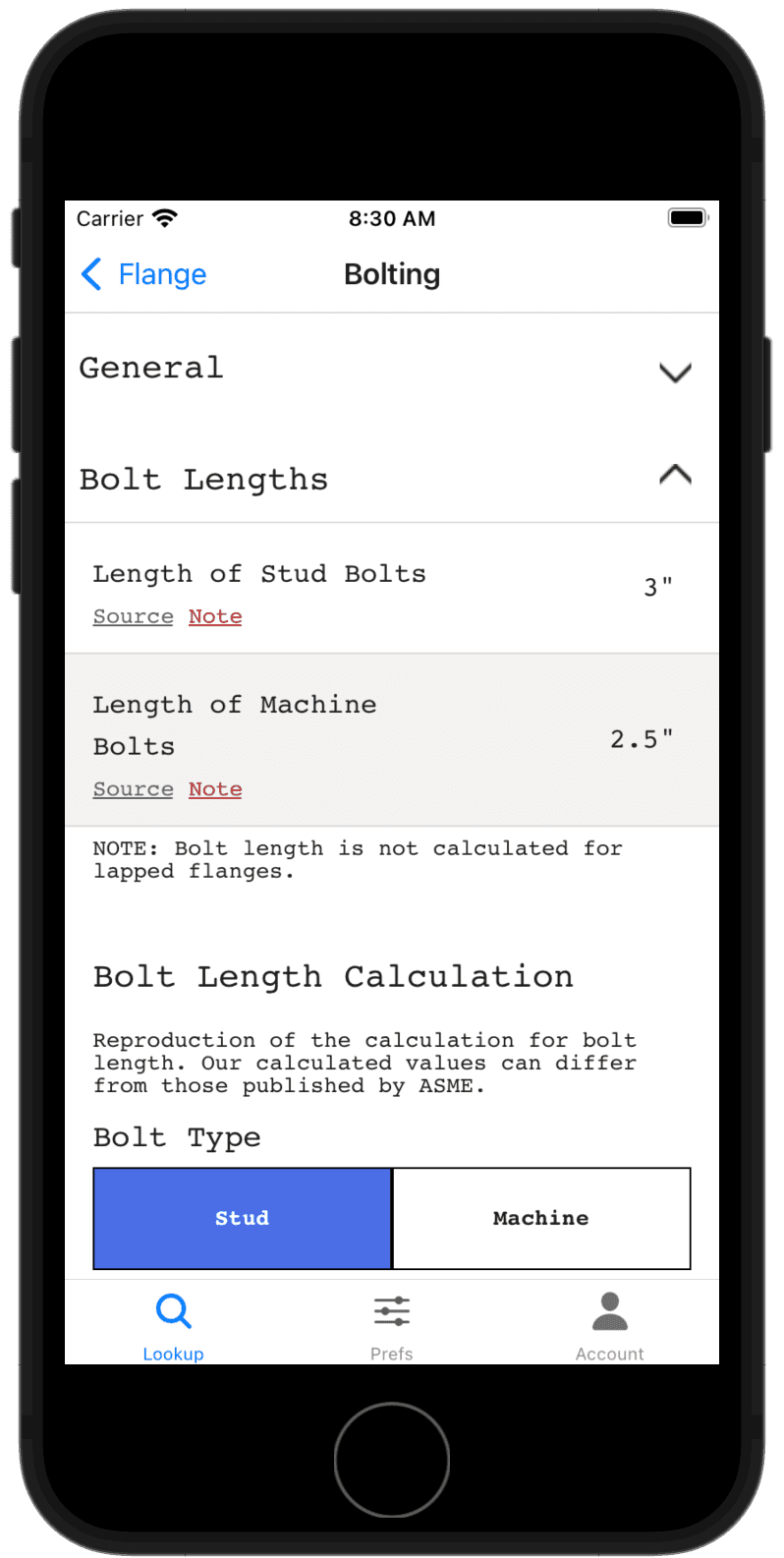

Detailed bolt data on your phone.
